1220x2440mm, 1250x2500mm
HUABAO
441233

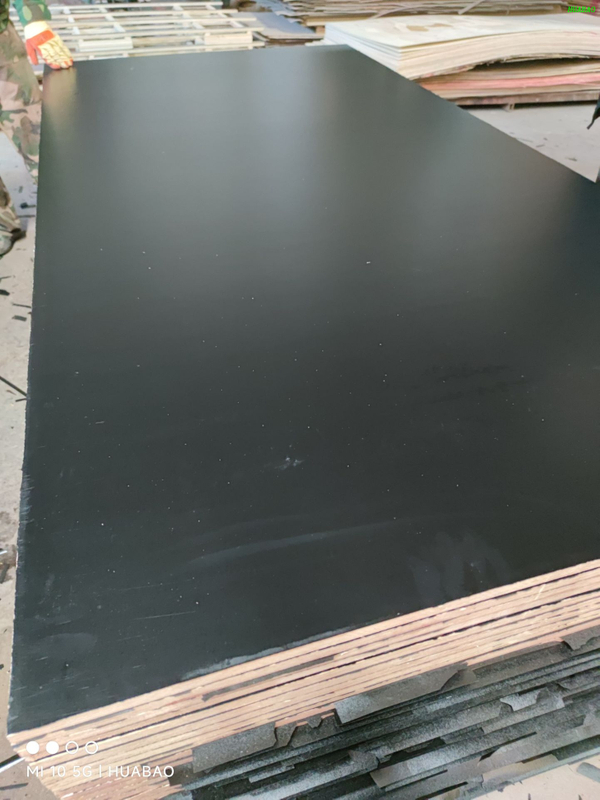

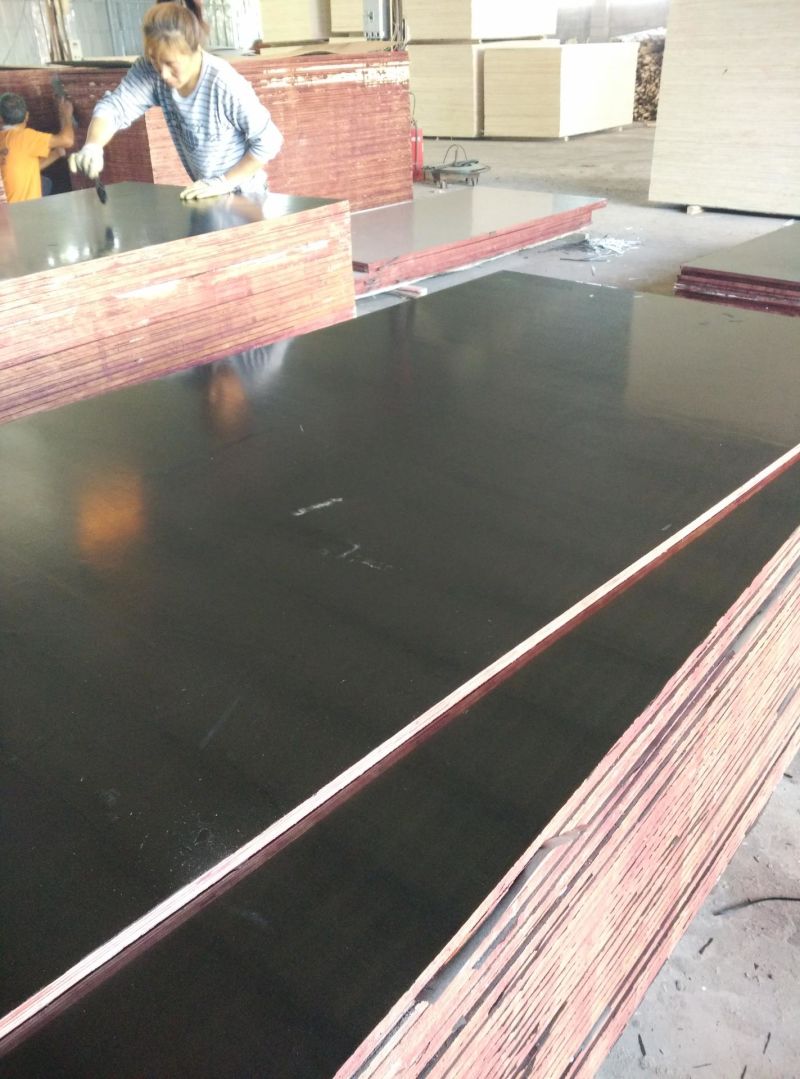

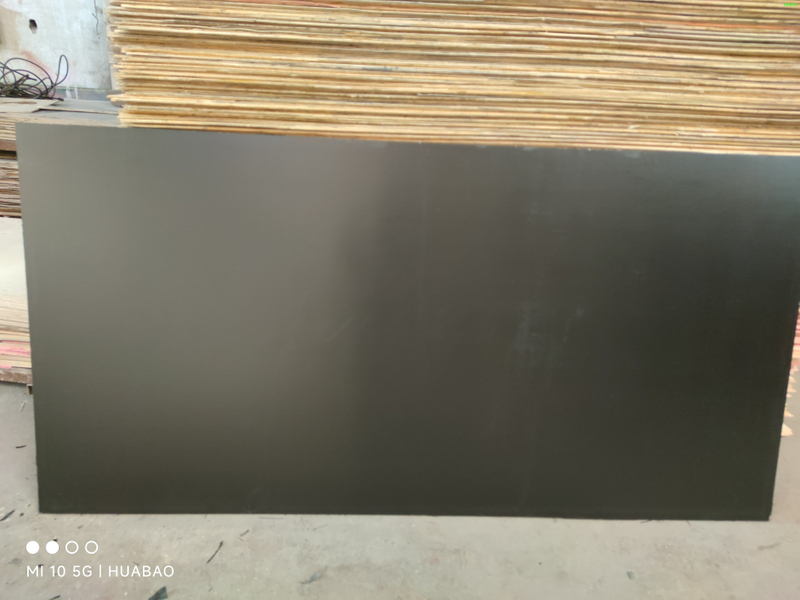

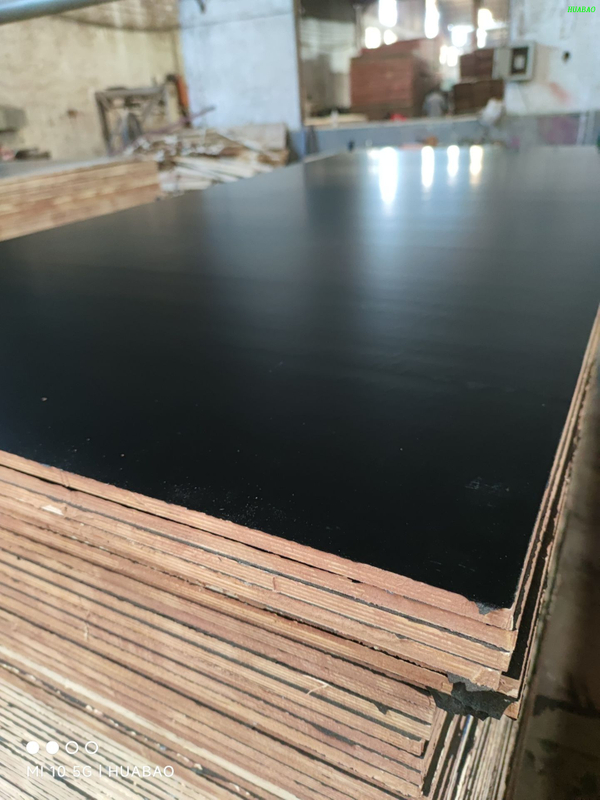

Chinese Good Quality Film Faced Plywood:
1. Products Name: Plywood / Film Faced plywood/Marine Plywood/shuttering plywood
2. Face/Back:black film, 240g/m2
brown film, 120g/m2, 220g/m2
3. Glue: WBP, Melamine, Mr
4. Core: Poplar, Hardwood, Combine, eucalyptus, birch, pine
5. Grade: First Grade
6. Mositure: Below 14%
7. Dimensions: 1220*2440mm, 1250*2500mm
8. Thickness: 6.5mm, 9mm, 12mm, 15mm, 18mm, 21mm etc
9. Tolerance: (-0.5mm, +0.5mm) in the thickness
(-2mm, +2mm) in the width and length
Sr No. | Property | Unit | Test Method | Value of Test | Result | |
| 1 | Moisture Content | % | EN 322 | 8.4 | Check out | |
| 2 | Density | Kg/m3 | EN 323 | 530 | Check out | |
| 3 | Bonding Quality | Bonding Quality | Mpa | EN 314 | Max: 1.40 Min: 0.70 | Check out |
| Damage Rate | % | 74 | Check out | |||
| 4 | Bending Modules of Elasticity | Longitudinal | Mpa | EN 310 | 5215 | Check out |
| Lateral | 4796 | Check out | ||||
| 5 | Bending Strength N/mm | Longitudinal | Mpa | 52.74 | Check out | |
| Lateral | 43.55 | Check out | ||||
| 6 | Cycle Life | About 8-15 Repeated Using Times According to Projects by Formwork Application | ||||
Country of Origin: The People's Republic Of China
Delivery Term: FOB, CNF, DAF, CIP & CIF
MIQ: One 40FT container for the trial Order
Avalibity: 100*40ft container for marine plywood
Transportation: By container, in Bulk or By wagon
Payment Terms: TT or LC at sight

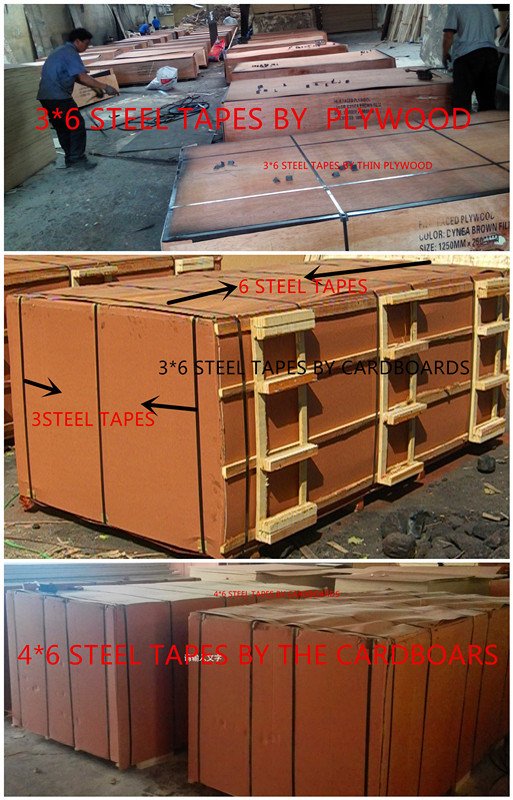

Packages: Outter packed by the cardboard or thin Plywood, inner packed by the plastic bags, Strenthed by the steel or PVC tapes
Quantity: 20 ft container- 8 pallets, 22M3
40 ft container- 16 pallets, 43 M3
40 hq container- 18 pallets, 53 M3
We are professional manufature and exporter of types of plywood in China. Such as: Marine plywood, Okoume plywood, Bintangor plywood, keruing plywood, poplar plywood, birch plywood, pine plywood etc. If you want marine plywood, please feel free to contact us.
