1220x2440mm, 1250x2500mm
HUABAO
441232

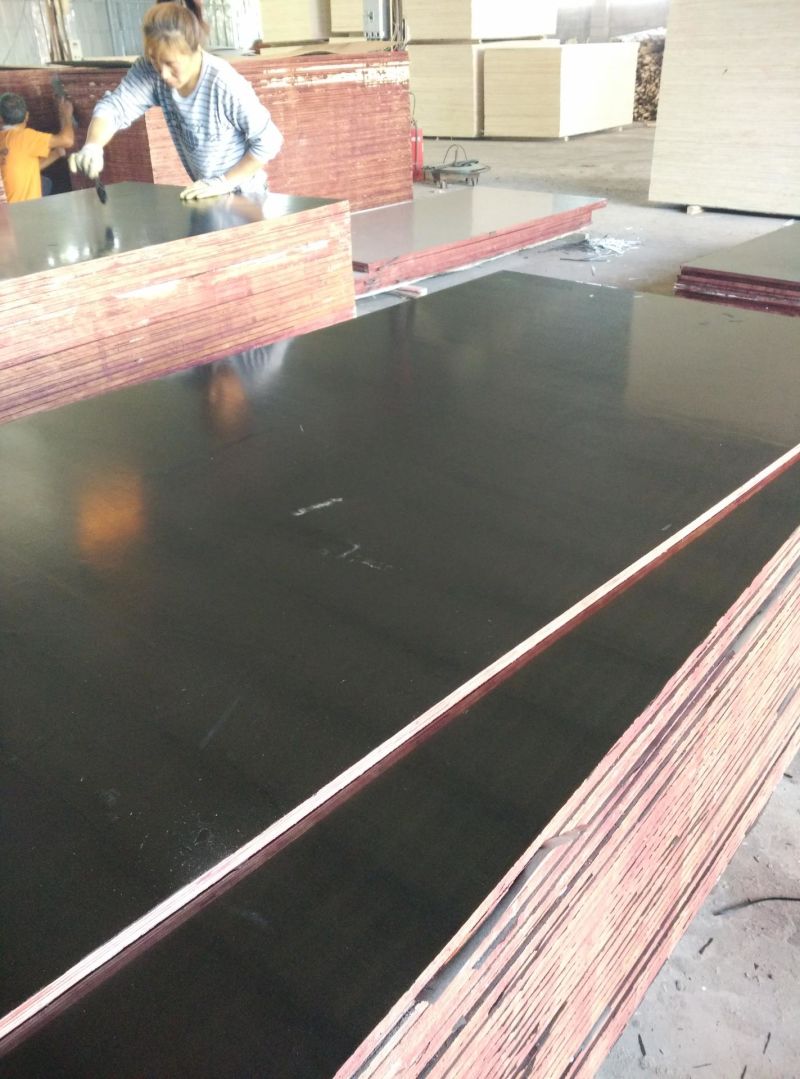

Chinese Good Quality Film Faced Plywood:
1. Products Name: Plywood / Film Faced plywood/Marine Plywood/shuttering plywood
2. Face/Back:black film, 240g/m2
brown film, 120g/m2, 220g/m2
3. Glue: WBP, Melamine, Mr
4. Core: Poplar, Hardwood, Combine, eucalyptus, birch, pine
5. Grade: First Grade
6. Mositure: Below 14%
7. Dimensions: 1220*2440mm, 1250*2500mm
8. Thickness: 6.5mm, 9mm, 12mm, 15mm, 18mm, 21mm etc
9. Tolerance: (-0.5mm, +0.5mm) in the thickness
(-2mm, +2mm) in the width and length
Sr No. | Property | Unit | Test Method | Value of Test | Result | |
| 1 | Moisture Content | % | EN 322 | 8.4 | Check out | |
| 2 | Density | Kg/m3 | EN 323 | 530 | Check out | |
| 3 | Bonding Quality | Bonding Quality | Mpa | EN 314 | Max: 1.40 Min: 0.70 | Check out |
| Damage Rate | % | 74 | Check out | |||
| 4 | Bending Modules of Elasticity | Longitudinal | Mpa | EN 310 | 5215 | Check out |
| Lateral | 4796 | Check out | ||||
| 5 | Bending Strength N/mm | Longitudinal | Mpa | 52.74 | Check out | |
| Lateral | 43.55 | Check out | ||||
| 6 | Cycle Life | About 8-15 Repeated Using Times According to Projects by Formwork Application | ||||
Country of Origin: The People's Republic Of China
Delivery Term: FOB, CNF, DAF, CIP & CIF
MIQ: One 40FT container for the trial Order
Avalibity: 100*40ft container for marine plywood
Transportation: By container, in Bulk or By wagon
Payment Terms: TT or LC at sight

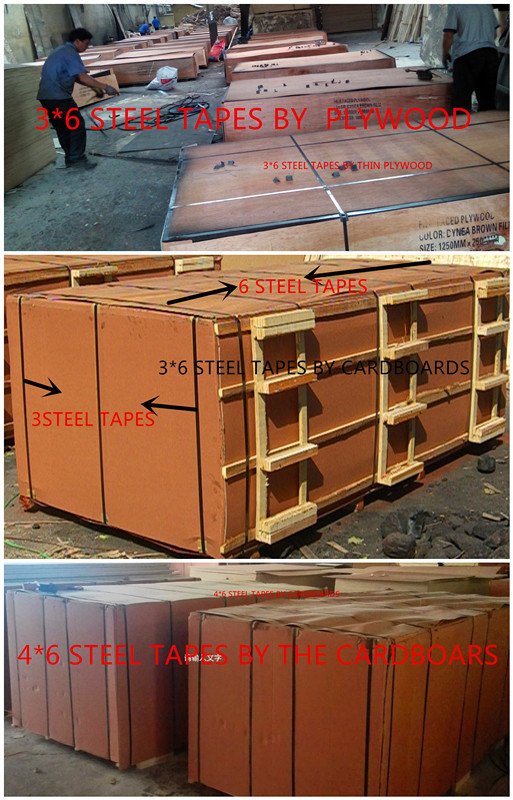

Packages: Outter packed by the cardboard or thin Plywood, inner packed by the plastic bags, Strenthed by the steel or PVC tapes
Quantity: 20 ft container- 8 pallets, 22M3
40 ft container- 16 pallets, 43 M3
40 hq container- 18 pallets, 53 M3
We are professional manufature and exporter of types of plywood in China. Such as: Marine plywood, Okoume plywood, Bintangor plywood, keruing plywood, poplar plywood, birch plywood, pine plywood etc. If you want marine plywood, please feel free to contact us.
Chinese Good Quality Film Faced Plywood:
1. Products Name: Plywood / Film Faced plywood/Marine Plywood/shuttering plywood
2. Face/Back:black film, 240g/m2
brown film, 120g/m2, 220g/m2
3. Glue: WBP, Melamine, Mr
4. Core: Poplar, Hardwood, Combine, eucalyptus, birch, pine
5. Grade: First Grade
6. Mositure: Below 14%
7. Dimensions: 1220*2440mm, 1250*2500mm
8. Thickness: 6.5mm, 9mm, 12mm, 15mm, 18mm, 21mm etc
9. Tolerance: (-0.5mm, +0.5mm) in the thickness
(-2mm, +2mm) in the width and length
Sr No. | Property | Unit | Test Method | Value of Test | Result | |
| 1 | Moisture Content | % | EN 322 | 8.4 | Check out | |
| 2 | Density | Kg/m3 | EN 323 | 530 | Check out | |
| 3 | Bonding Quality | Bonding Quality | Mpa | EN 314 | Max: 1.40 Min: 0.70 | Check out |
| Damage Rate | % | 74 | Check out | |||
| 4 | Bending Modules of Elasticity | Longitudinal | Mpa | EN 310 | 5215 | Check out |
| Lateral | 4796 | Check out | ||||
| 5 | Bending Strength N/mm | Longitudinal | Mpa | 52.74 | Check out | |
| Lateral | 43.55 | Check out | ||||
| 6 | Cycle Life | About 8-15 Repeated Using Times According to Projects by Formwork Application | ||||
Country of Origin: The People's Republic Of China
Delivery Term: FOB, CNF, DAF, CIP & CIF
MIQ: One 40FT container for the trial Order
Avalibity: 100*40ft container for marine plywood
Transportation: By container, in Bulk or By wagon
Payment Terms: TT or LC at sight
Packages: Outter packed by the cardboard or thin Plywood, inner packed by the plastic bags, Strenthed by the steel or PVC tapes
Quantity: 20 ft container- 8 pallets, 22M3
40 ft container- 16 pallets, 43 M3
40 hq container- 18 pallets, 53 M3
We are professional manufature and exporter of types of plywood in China. Such as: Marine plywood, Okoume plywood, Bintangor plywood, keruing plywood, poplar plywood, birch plywood, pine plywood etc. If you want marine plywood, please feel free to contact us.
