Availability: | |
---|---|
Quantity: | |
1220x2440mm
HUABAO
441234
1. Products Name: Plywood, Film Faced Plywood, Shuttering Plywood, Concrete Formwork, Marine Plywood
2. Kind: Black Film Faced plywood, brown film faced plywood
3. Film: Brown Film/ Black Film, Both Sides
4. Glue: WBP Glue, Mr Glue
5. Core: Poplar, Hardwood, Birch
6. Grade: First
7. Techinical Data:
Mositure: Below 12%
Dimensions: 1220*2440mm, 1250*2500mm
Thickness: 6.5mm, 9mm, 12mm, 15mm, 18mm, 21mm etc
Tolerance: (-0.5mm, +0.5mm) in the thickness
(-2mm, +2mm) in the width and length
Usage Times: At least 10 times
Country of Origin: The People's Republic Of China
Delivery Term: FOB, CNF, DAF, CIP & CIF
MIQ: One 40FT container for the trial Order
Supply Ability: 100*40 ft container per month for the film faced plywood
Transportation: By container, in Bulk or By wagon
Payment Terms: TT or LC at sight
Packages: Outter packed by the cardboard or thin Plywoods, inner packed by the plastic bags, Strenthed by the steel or PVC tapes
Quantity: 20 ft container- 8 pallets, 22M3
40 ft container- 16 pallets, 43 M3
40 hq container- 18 pallets, 53 M3
We are professional supplier for the film faced plywood and plywoods. Our plywoods are exported to Bulgaria, Poland, Vietnam, Kasakhstan, Pakistan, Russia, Thailand etc and get good reputations.
If you are intrested in our plywood and film faced plywood, please contact with us freely.

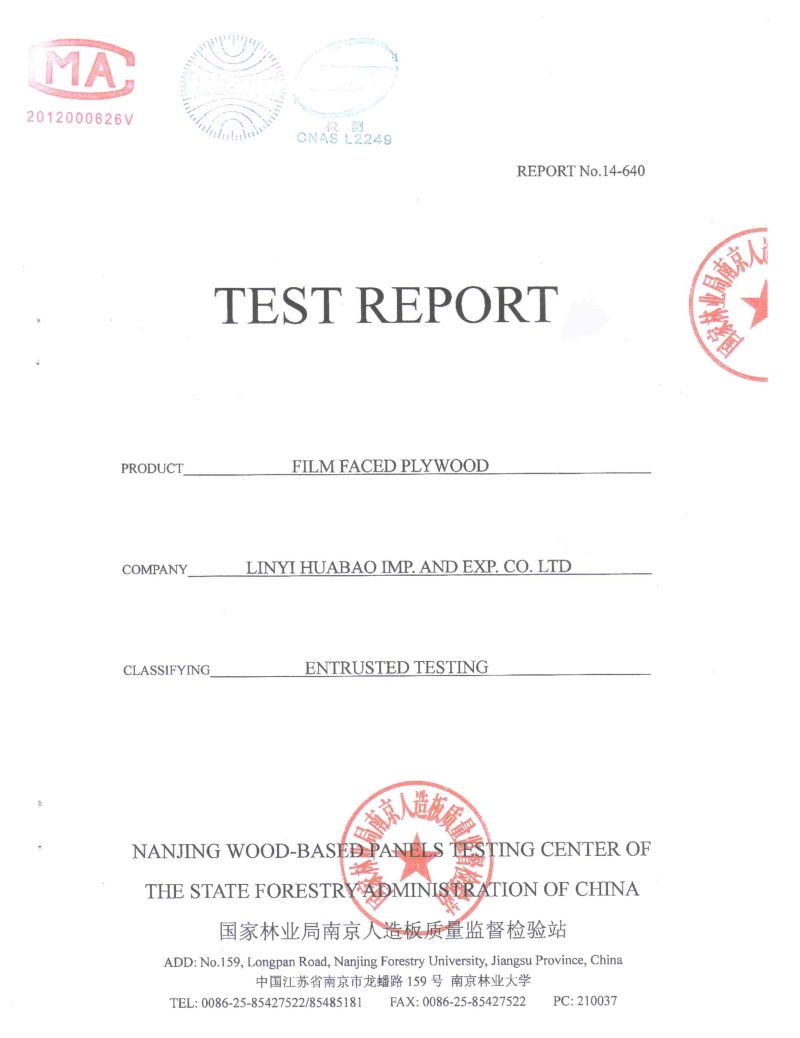

Sr No. | Property | Unit | Test Method | Value of Test | Result | |
1 | Moisture Content | % | EN 322 | 8.4 | Check out | |
2 | Density | Kg/m3 | EN 323 | 530 | Check out | |
3 | Bonding Quality | Bonding Quality | Mpa | EN 314 | Max: 1.40 Min: 0.70 | Check out |
Damage Rate | % | 74 | Check out | |||
4 | Bending Modules of Elasticity | Longitudinal | Mpa | EN 310 | 5215 | Check out |
Lateral | 4796 | Check out | ||||
5 | Bending Strength N/mm | Longitudinal | Mpa | 52.74 | Check out | |
Lateral | 43.55 | Check out | ||||
6 | Cycle Life | About 8-15 Repeated Using Times According to Projects by Formwork Application |

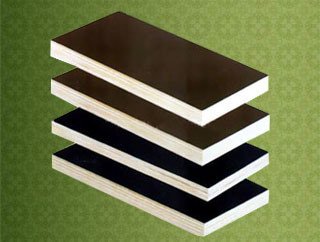

FILM FACED PLYWOOD | ||
21mm: 13+2 Ply, 18mm: 11+2 Ply, 17mm: 11+2 Ply, 15mm: 9+2 Ply, 12mm: 7+2 Ply | ||
Black Film, Poplar Core,MR Glue, Carton Packaging, one time pressed | ||
Size(mm) | Price / CBM | Delivery Term |
12x1220x2440 | $325.00 | FOB Qingdao |
15x1220x2440 | $310.00 | FOB Qingdao |
18x1220x2440 | $295.00 | FOB Qingdao |
21x1220x2440 | $285.00 | FOB Qingdao |
Brown Film, Poplar Core, ,WBP GLUE, Carton Packaging,two times pressed | ||
Size(mm) | Price / CBM | Delivery Term |
12x1220x2440 | $340.00 | FOB Qingdao |
15x1220x2440 | $320.00 | FOB Qingdao |
18x1220x2440 | $310.00 | FOB Qingdao |
21x1220x2440 | $305.00 | FOB Qingdao |
1. Products Name: Plywood, Film Faced Plywood, Shuttering Plywood, Concrete Formwork, Marine Plywood
2. Kind: Black Film Faced plywood, brown film faced plywood
3. Film: Brown Film/ Black Film, Both Sides
4. Glue: WBP Glue, Mr Glue
5. Core: Poplar, Hardwood, Birch
6. Grade: First
7. Techinical Data:
Mositure: Below 12%
Dimensions: 1220*2440mm, 1250*2500mm
Thickness: 6.5mm, 9mm, 12mm, 15mm, 18mm, 21mm etc
Tolerance: (-0.5mm, +0.5mm) in the thickness
(-2mm, +2mm) in the width and length
Usage Times: At least 10 times
Country of Origin: The People's Republic Of China
Delivery Term: FOB, CNF, DAF, CIP & CIF
MIQ: One 40FT container for the trial Order
Supply Ability: 100*40 ft container per month for the film faced plywood
Transportation: By container, in Bulk or By wagon
Payment Terms: TT or LC at sight
Packages: Outter packed by the cardboard or thin Plywoods, inner packed by the plastic bags, Strenthed by the steel or PVC tapes
Quantity: 20 ft container- 8 pallets, 22M3
40 ft container- 16 pallets, 43 M3
40 hq container- 18 pallets, 53 M3
We are professional supplier for the film faced plywood and plywoods. Our plywoods are exported to Bulgaria, Poland, Vietnam, Kasakhstan, Pakistan, Russia, Thailand etc and get good reputations.
If you are intrested in our plywood and film faced plywood, please contact with us freely.
Sr No. | Property | Unit | Test Method | Value of Test | Result | |
1 | Moisture Content | % | EN 322 | 8.4 | Check out | |
2 | Density | Kg/m3 | EN 323 | 530 | Check out | |
3 | Bonding Quality | Bonding Quality | Mpa | EN 314 | Max: 1.40 Min: 0.70 | Check out |
Damage Rate | % | 74 | Check out | |||
4 | Bending Modules of Elasticity | Longitudinal | Mpa | EN 310 | 5215 | Check out |
Lateral | 4796 | Check out | ||||
5 | Bending Strength N/mm | Longitudinal | Mpa | 52.74 | Check out | |
Lateral | 43.55 | Check out | ||||
6 | Cycle Life | About 8-15 Repeated Using Times According to Projects by Formwork Application |
FILM FACED PLYWOOD | ||
21mm: 13+2 Ply, 18mm: 11+2 Ply, 17mm: 11+2 Ply, 15mm: 9+2 Ply, 12mm: 7+2 Ply | ||
Black Film, Poplar Core,MR Glue, Carton Packaging, one time pressed | ||
Size(mm) | Price / CBM | Delivery Term |
12x1220x2440 | $325.00 | FOB Qingdao |
15x1220x2440 | $310.00 | FOB Qingdao |
18x1220x2440 | $295.00 | FOB Qingdao |
21x1220x2440 | $285.00 | FOB Qingdao |
Brown Film, Poplar Core, ,WBP GLUE, Carton Packaging,two times pressed | ||
Size(mm) | Price / CBM | Delivery Term |
12x1220x2440 | $340.00 | FOB Qingdao |
15x1220x2440 | $320.00 | FOB Qingdao |
18x1220x2440 | $310.00 | FOB Qingdao |
21x1220x2440 | $305.00 | FOB Qingdao |
