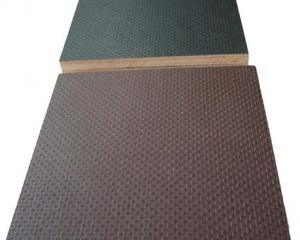

Film Faced Plywood
1. Name and Features: Film faced plywood, marine plywood, concrete plywood, shuttering plywood, formwork plywood, construction plywood, Formwork panel, concrete formwork, anti-slip film faced plywood, film faced plywood with logo
1). Waterproof, can bear 24 hours water boiling without turning on glue.
2). Not warping, not out of shape do not fracture and keep good warm that can be used in winter.
3). Corrupt the concrete surface
4). The membrane can be took off easily, the time is only 1/7 of the steel mould.
5). The film imported from fenland and Malaysia is different from red, brown to black.
6). It is suitable for constructing in the skyscraper and bridge
2. Core: Poplar, hardwood, birch, pine, etc
3. Glue: WBP glue
4. Thickness: 12mm, 15mm, 18mm, 19mm, 20mm, 21mm, 25mm
5. Size: 1220x2440, 1250x2500
6. Film: Brown film, black film, red film, Chinese film, imported film
500kg/m3 for poplar
560kg/m3 for hardwood
700kg/m3 for birch
8. Application: Construction formwork, concrete formwork, outdoor furniture etc.
(-0.5mm, +0.5mm) in the thickness,
(-2mm, +2mm) in the width and length
10. Use times: At least 10 times
11. Moisture: Below 12%
12. Country of Origin: The People's Republic of China
13. Delivery Term: FOB, CIF, CNF/CFR/C&F, CIP, DAF
14. MOQ: 1*40 HQ container for a trial order
15. Transportation: By sea, by bulk, by train/wagon
16. Payment Terms: T/T, L/C at sight
17. Packing: Outer packed by the cardboard or thin Plywoods, inner packed by the plastic bags, Strengthened by the steel or PVC tapes
20 foot container--8 pallets, about 22m3,
40 foot container--16 pallets, about 43m3,
40 hq container--18 pallets, about 54m3
|1 ||Thickness Tolerance ||± 0.5mm |
|2 ||Moisture Content ||≤ 10% |
|3 ||Density ||≥ 0.75g/cm3 |
|4 ||Wear Value ||≤ 0.1g/100r |
|5 ||Pound at the strength ||≥ 40kg/m2 |
|6 ||Flexility Value ||≥ 5000Mpa ≥ 7948Mpa |
|7 ||Equanimity Strength ||≥ 24Mpa ≥ 75.8Mpa |
|8 ||Flection Value ||≤ 1% |
|9 ||Thickness inflation ratio (72hoursnormal water immerse) ||≤ 8% |
Linyi Huabao Imp. And Exp. Co., Ltd is professional for film faced plywoods, we can provide the film faced plywood with logos, anti-slip film faced plywood, plywood for construction without film etc. If you need, please contact with me without any hesitation. You must get the best price and good quality!
